THE PRODUCT

InviziTrak makes green screen tracking markers invisible

InviziTrak 03.jpg

InviziTrak 04.jpg


COMPATIBLE CAMERA SYSTEMS

Compatible Cameras_v001.jpg

THE PHILOSOPHY

Directors, Cinematographers, and Visual Effects Supervisors should be empowered to focus on pushing the limits of visual storytelling, not inefficient green-screen setups. InviziTrak technology represents a quantum leap in tracking live-action footage by completely eliminating the need for outdated tracking markers.



PRICING

BUY/RENT INQUIRE

THE TECH

InviziTrak captures the tracking data in between the frames. The result?…

For each shot captured, you get TWO pieces of footage - one CLEAN and one with COMPLETE TRACKING DATA. This eliminates the need for post houses to remove tracking markers altogether, saving production money and allowing post-production to take on more work, faster. Additionally, on-set monitors always remain marker-free.

InviziTrak stays hidden allowing creativity to be seen.



ON SET SET-UP

ON SET SET-UP

THE BENEFITS



VFX SUPS

  • 100% clean keys

  • No marker removal

  • Motion-blur free

  • Green screen, blue screen and non-chroma surfaces

  • Customizable grid, cross & dot markers


PRODUCERS

  • Reduces shot cost in post production

  • Reduces set-up time on set

  • Marker-free playback

  • Safe. FDA & OSHA compliant


LIGHTING

  • 1 Projector covers ~80’x30’ of cyc

  • 110-240v AC power or Anton Bauer battery (10-20 hours)

  • iPad control for dimming and settings


DPs

  • Wireless shutter sync

  • ARRI, RED, Sony and Phantom compatible

  • Works with any frame rate (1-500fps)


TALENT

  • Projected behind talent

  • Non-distracting

  • Dimmable


SOUND

  • Fan-less and silent





SYSTEM SPECIFICATIONS

Each rental system includes:

(1) Laser Projector Module

(6) Laser Cubes

(1) Camera Transmitter

(1) iPad for wireless control

And all the necessary cables.

The system comes in a single Pelican Air 1607 roll case.



Sys Specs_Laser Projector Module_1K.jpg

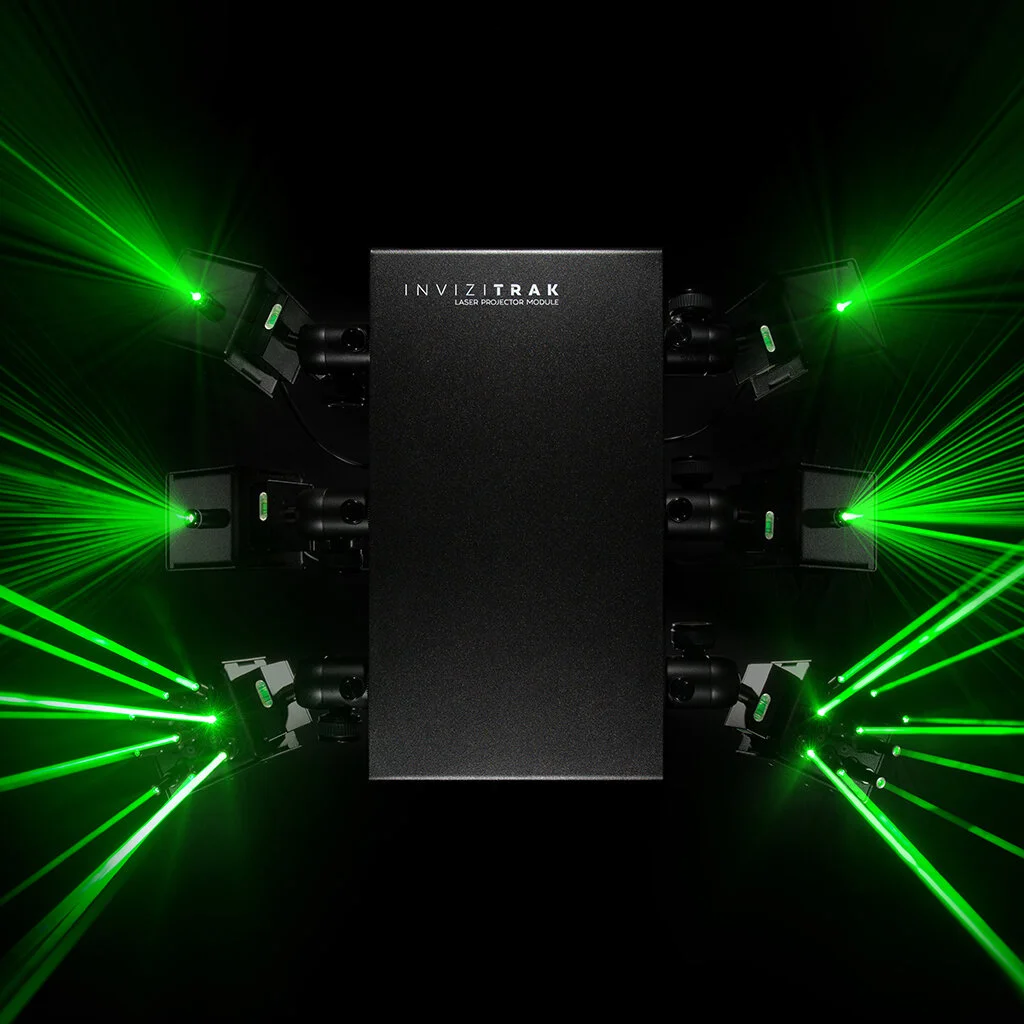

LASER PROJECTOR MODULE

  • Lasers: (6) interchangeable Laser Cubes on ball mounts.

  • Each system comes with 6 cube options:

  • (4) Cubes with dot grids, and the option for either tight or loose spacing dot generators on each

  • (2) Cubes with 9x lasers that can individually aim position and change to crosshair pattern.

  • Dimming: 10 brightness settings per Laser Cube

  • Power Input 1: AC 110-240V Neutrik powerCON connector

  • Power Input 2: DC Power 9-40V (Anton Bauer battery)

  • Power Output: powerCON AC loop

  • Mounting: VESA 100

  • Mounting: junior pin / baby pin combo swivel mount for stand mounting. Omega bracket for lighting grids.

  • Weight: 17lbs (7.7kg)

  • Dimensions: 21” H x 15” W x 7” D

Sys Specs_Transmitter_1K.jpg

CAMERA TRANSMITTER

  • Video Input: 3G HD-SDI. Extracts shutter sync from video input

  • Video Output: 3G HD-SDI video loop out

  • Shutter Input: 3-Pin LEMO. Accepts ARRI RS, RED CTRL, Phantom F-Sync shutter sync outputs via included adapter cables. (Sony coming soon)

  • Sync Input: BNC Genlock input

  • Power: 2-Pin LEMO (DC 6-30V) with included cables for 3-pin LEMO, 3-pin Fischer, D-Tap

  • Mounting: (2) 1/4”-20, ARRI 3/8” Accessory Mount + Teradek Bolt-style bottom bracket

  • Weight: 6 oz

  • Dimensions: 4.37” (111mm) H x 2.44” (62mm) W x 1.06” (27mm) D

Sys Specs_iPad_1K.jpg

iPad CONTROL APP

  • Wireless iPad control of Laser Projector Module(s) including:

  • Shutter offset adjustment

  • Shutter phase inversion (to toggle marker visibility on the 24fps monitor feed)

  • Laser pulse duration (to control motion-blur)

  • Laser brightness

  • Laser on/off/sync for each Laser Cube

  • Load/save system setting presets



DEMOS

SYSTEM WALK-THROUGH
